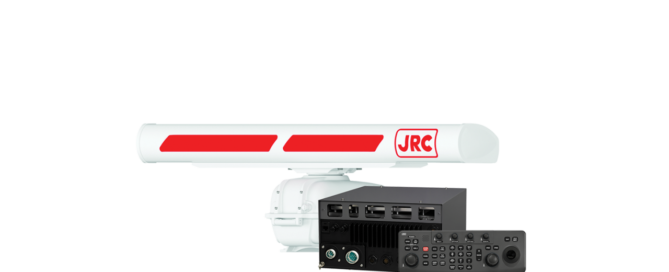

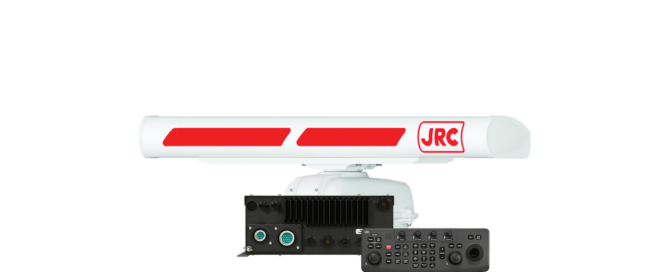

The newest addition to the JRC radar portfolio is the JMA-3400. This lightweight radar has user-friendly operation system and is specially designed for fishing boats, non-international trading vessels and workboats. The sectors that will definitely gain with this product, are offshore, inland and fishing. The system can be completed by choosing from a variety of 2 ft, 3,9 ft, 4 ft and 6 ft scanners.

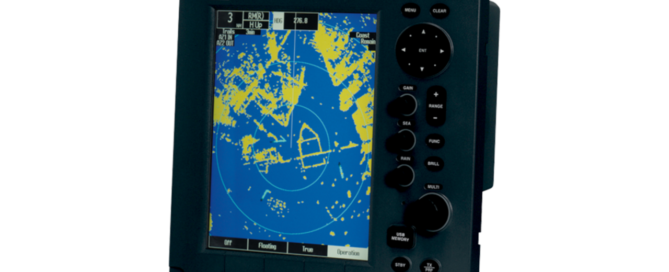

The new JMA-1030 radar series is JRC’s very first touch operated radar with new dome scanners that provide you with highly accurate target clarity and ease of mind of your surroundings during night or intense fog. The high definition 7-inch wide display has allowed JRC engineers to develop an exciting new software approach that offers an incredibly easy-to-use icon based navigation experience with simple menus and dedicated functions. The set of icons has been carefully designed. We brought the elements and visual style of our commercial class Multi Function Display (MFD) to our most compact series of radars. Built with the proven quality you expect from us. JRC engineers custom designed the System-on-Chip (SoC) inside the new JMA-1030 series to be an extremely powerful tool and at the same time makes the display compact and very power efficient. The new radar has the ability to display 50 AIS1 symbols, and 10 MARPA™2 tracking targets as standard.
The JMA-610 has many of the characteristics of the JMA-609. After all, why mess with a good thing! Still, the technicians of Alphatron and JRC have succeeded in adding functions that are actually useful. The photoshot® and AIS functionalities, in particular, are two exceptional additions to this radar, a navigation centre that is considered the best of its kind. But operator feedback has also inspired changes that have further improved image quality and ease of use. The JMA 610 is able to convert the radar screen into a multifunctional display system without limitations. However for the operator who is only interested in using the basic radar functions the extra functions can be switched on and off. The new JMA 610 is designed to seamlessly fit into the Multifunctionline concept in case a combination with other MF instruments within the Multifunctionline is realized. All necessary control buttons for the radar within a hand’s reach due to the handy design. A build in roller ball is available to operate the various menu functions.
This very light weight antenna, perfect for small offshore, inland and fishing vessels operates at a low power rate, but with very stable results. Technical Specifications of the antenna: - Output Power: 4kW - 1.5ft scanner (450mm radome) - Beam width: Horizontal 5.2°, Vertical 25° - Rotation speed: 16, 20, 24, 27, 30, 36, 42, 48 rpm - Pulse width/freq. repetition: 0.08μs/4000Hz, 0.08μs/2250Hz, 0.13μs/1700Hz, 0.25μs/1700Hz, 0.5μs/1200Hz, 0.8μs/750Hz - Adding range scale: 1, 2, 4, 8, 16, and 32＊1 NM
This very light weight antenna, perfect for small offshore, inland and fishing vessels operates at a low power rate, but with very stable results. Technical Specifications of the antenna: - Output Power: 4kW - Transmitting Frequency: X-band (9410±30MHz) - 2ft scanner (620mm radome) - Beam width: Horizontal 4°, Vertical 25° - Rotation speed: 16, 20, 24, 27, 30, 36, 42, 48 rpm - Pulse width/freq. repetition: 0.08μs/4000Hz, 0.08μs/2250Hz, 0.13μs/1700Hz, 0.25μs/1700Hz, 0.5μs/1200Hz, 0.8μs/750Hz, 1.0μs/650Hz - Max. Range: 48NM - Range scales: 0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48 NM - Adding range scale: 1, 2, 4, 8, 16, and 32＊1 NM
This very light weight antenna, perfect for small offshore, inland and fishing vessels operates at a low power rate, but with very stable results. Technical Specifications of the antenna: - Output Power: 4kW - Transmitting Frequency: X-band (9410±30MHz) - 2ft scanner (620mm radome) - Beam width: Horizontal 4°, Vertical 25° - Rotation speed: 16, 20, 24, 27, 30, 36, 42, 48 rpm - Pulse width/freq. repetition: 0.08μs/4000Hz, 0.08μs/2250Hz, 0.13μs/1700Hz, 0.25μs/1700Hz, 0.5μs/1200Hz, 0.8μs/750Hz, 1.0μs/650Hz - Max. Range: 48NM - Range scales: 0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48 NM
This very light weight antenna, perfect for small offshore, inland and fishing vessels operates at a low power rate, but with very stable results. Technical Specifications of the antenna: - Output Power: 6kW - Transmitting Frequency: X-band (9410±30MHz) - 3.9ft scanner (open array) - Beam width: Horizontal 2°, Vertical 30° - Rotation speed: 16, 20, 24, 27 rpm - Pulse width/freq. repetition: 0.08μs/4000Hz, 0.08μs/2250Hz, 0.13μs/1700Hz, 0.25μs/1700Hz, 0.5μs/1200Hz, 0.8μs/750Hz, 1.0μs/650Hz - Max. Range: 72NM - Range scales: 0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48, 72 NM
This very light weight antenna, perfect for small offshore, inland and fishing vessels operates at a low power rate, but with very stable results. Technical Specifications of the antenna: - Output Power: 6kW - Transmitting Frequency: X-band (9410±30MHz) - 4ft scanner (open array) - Beam width: Horizontal 1.9°, Vertical 20° - Rotation speed: 16, 20, 24, 27 rpm - Pulse width/freq. repetition: 0.08μs/2250Hz, 0.25μs/1700Hz, 0.5μs/1200Hz, 0.8μs/750Hz, 1.0μs/650Hz - Max. Range: 96NM - Range scales: 0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48, 72, 96 NM
This very light weight antenna, perfect for small offshore, inland and fishing vessels operates at a low power rate, but with very stable results. Technical Specifications of the antenna: - Output Power: 10kW - Transmitting Frequency: X-band (9410±30MHz) - 4ft scanner (open array) - Beam width: Horizontal 1.2°, Vertical 20° - Rotation speed: 16, 20, 24, 27 rpm - Pulse width/freq. repetition: 0.08μs/2250Hz, 0.25μs/1700Hz, 0.5μs/1200Hz, 0.8μs/750Hz, 1.0μs/650Hz - Max. Range: 96NM - Range scales: 0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48, 72, 96 NM
Sistemas de detecção de incêndio são instalados em embarcações para monitorar a praça de máquinas, a sala de controle do motor e as áreas de acomodação, quando há focos de incêndio. O nosso sistema consiste em um painel de controle e detectores de fumaça, calor e/ou chamas e caixas de alarme de incêndio manuais (call points). A escolha dos tipos ideais de detectores é feita dependendo da área a ser monitorada. Nosso parceiro Nohmi Bosai desenvolve e fornece os melhores produtos, capazes de resistir a condições ambientais severas nos navios, com base em uma vasta bagagem de muitos anos de experiência em tecnologia. O painel de alarme de detecção de incêndio que está sendo transmitido após o recebimento de um sinal. Os detectores de incêndio Nohmi e as caixas manuais de alarme de incêndio estão equipados com indicadores de resposta individuais (via LED). Com a adoção do sistema a dois-fios, é possível usar diferentes tipos de detectores de incêndio e caixas de alarme de incêndio manuais, juntos, em um loop comum. Os detectores de ionização e de fumaça ópticos estão equipados com uma chave de ajuste de sensibilidade e o sistema com excelente desempenho de custo é realizado. Com uma vasta lista de diferentes tipos de sensores, disponibilizamos, para compor seu pacote, é o seguinte: - Detectores de fumaça por ionização (expostos e ocultos) - Detectores ópticos de fumaça - Detectores térmicos de calor - Detectores de chama infravermelhos - Caixas manuais de alarme de incêndio (call points)
